Twitter| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | CompAir |
| Material | Brass |
| Finishing | Polished |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Color
Sky Blue
Condition
New
Automatic Grade
Manual
Certification
ISO 9001:2008 Certified
Country of Origin
India
Max. Compressor Capacity
CMNL10: 10 m 3 /min, CMNL100: 100 m 3 /min, CMNL500: 500 m 3 /min
Max. Drainage Capacity of Condensate At 16 Bar
CMNL10: 145 l/h, CMNL100: 1062 l/h, CMNL500: 4800 l/h
Min./max. System Pressure
0 - 16 bar (0 - 230 psi)
Min./max. Medium Temperature
1 - 50°C (34 - 122°F)
Min./max. Ambient Temperature
1 - 50°C (34 - 122°F)
Enclosure Protection Rating
IP68 (NEMA6)
Inlet Connections
CMNL10: 1/2 Inch BSP, 2 inlet options, CMN100: 1/2 Inch BSP,3 inlet options,CMNL500:3/4Inch BSP,3 i
Valve Type
Direct Acting
Valve Orifice
CMNL10: 2mm , CMNL100: 6mm, CMNL500: 12mm
Valve Seals
FPM
Serviceable Valve
Yes
Housing Material
Corrosion resistant aluminium, EP coating
Packaging Details
box

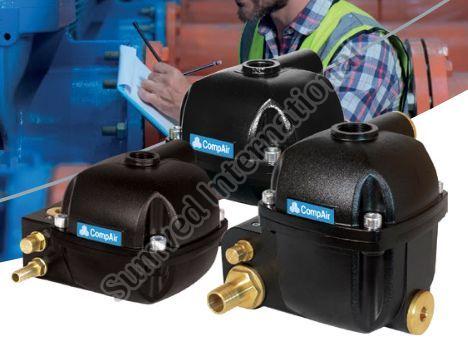

Magnetically operated level sensed condensate drain - the CMNL10 is a magnetically operated zero air loss drains that discharge condensate from all compressed air systems by using a unique technology based on magnetic forces and without the usage of electricity. The environmentally-friendly CMNL100 removes all types of condensate from compressed air systems up to 100 m3/min while the CMNL500 is ideal for larger applications up to 500 m3/min with exceptionally large condensate discharge capacity of 4,800 l/h at 16 bar.
Max. compressor capacity:
CMNL10: 10 m3/min
CMNL100: 100 m3/min
CMNL500: 500 m3/min
Min./max. system pressure: 0 - 16 bar (0 - 230 psi)
Looking for "CompAir CMNL10, 100 & 500 Automatic Drain Valve" ?
