Compair Automatic Drain Valves
BrochureLeading Manufacturers, Exporters, Wholesaler, Retailer and Trader of CompAir CCNL10 and 100 Automatic Drain Valve, CompAir CMNL10, 100 & 500 Automatic Drain Valve, CompAir CSLV and CSLVE Automatic Drain Valve and CompAir CTDV and CTDC Automatic Drain Valve from Navi Mumbai.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Condition | New |
| Color | Sky Blue |
| Country of Origin | India |
| Brand Name | CompAir |
| Material | Brass |
| Application | Air Fitting |
| Max. Compressor Capacity | CCNL10: 10 m 3 /min, CCNL100: 100 m 3 /min |
| Max. Drainage Capacity of Condensate | CCNL10: 45 l/h at 16 bar, CCNL100: 665 l/h at 16 bar, CCNL100 HP: 120 l/h at 50 bar |
| Min./max. System Pressure | 0 - 16 bar (0 - 230 psi), HP: 0 - 50 bar (0 - 725 psi) |
| Min./max. Medium Temperature | 1 - 50°C (34 - 122°F) |
| Min./max. Ambient Temperature | 1 - 50°C (34 - 122°F) |
| Supply Voltage Options | 115VAC / 230VAC |
| Enclosure Protection Rating | IP65 (NEMA4) |
| Connector Type (power) | DIN 43650-B |
| Inlet Connection | 1/2 |
| Inlet Height | CCNL10: 74mm CCNL100: 110mm (top) and 75 & 15mm (side) |
| Side Inlet Adaptor | Yes, Optional |
| Outlet Connection | 1/4 Inch BSP, with brass hose barb adapter |
| Valve Type | 2/2 Way, Direct Acting |
| Valve Orifice | CCNL10: 2mm CCNL100: 4mm (Non-HP) 1.8mm (HP) |
| Valve Seals | FPM |
| Serviceable Valve | Yes |
| Integrated Mesh Strainer | Yes |
| Housing Material | Corrosion Resistant Aluminium, Ep Coating |
| Test Feature | Yes |
| Visual Alarm | Yes, LED indication |
| Alarm feature (N/O)* | Normally open alarm output contact (potential free relay) |
Preferred Buyer From
| Location | Worldwide |

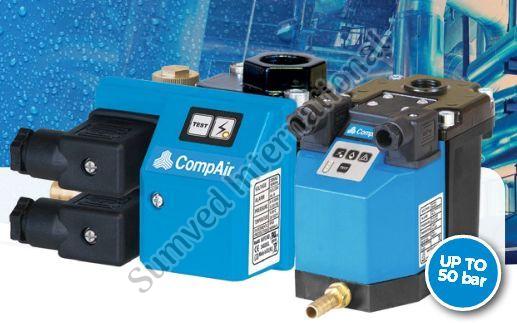

The CCNL10 removes all types of condensate from
compressed air systems with air flow up to 10 m3/min
without the loss of compressed air while the CCNL100
up to 100 m3/min.
Product features
The CCNL100 offers a rapid pay-back period due to
the zero air loss feature and energy saving features. The
compact and robust industrial housing, 2/2 way direct acting
valve with a large orifice, alarm feature and the integrated
mesh strainer make the CCNL100 and CCNL100-HP
highly reliable draining solutions. Equipped with a digital,
LED illuminated, sight-port/level indicator showing you
the condensate level inside the reservoir and enabling
you to monitor the operation, even in poor lit places.
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | CompAir |
| Material | Brass |
| Finishing | Polished |
| Color | Sky Blue |
| Condition | New |
| Automatic Grade | Manual |
| Certification | ISO 9001:2008 Certified |
| Country of Origin | India |
| Max. Compressor Capacity | CMNL10: 10 m 3 /min, CMNL100: 100 m 3 /min, CMNL500: 500 m 3 /min |
| Max. Drainage Capacity of Condensate At 16 Bar | CMNL10: 145 l/h, CMNL100: 1062 l/h, CMNL500: 4800 l/h |
| Min./max. System Pressure | 0 - 16 bar (0 - 230 psi) |
| Min./max. Medium Temperature | 1 - 50°C (34 - 122°F) |
| Min./max. Ambient Temperature | 1 - 50°C (34 - 122°F) |
| Enclosure Protection Rating | IP68 (NEMA6) |
| Inlet Connections | CMNL10: 1/2 Inch BSP, 2 inlet options, CMN100: 1/2 Inch BSP,3 inlet options,CMNL500:3/4Inch BSP,3 i |
| Valve Type | Direct Acting |
| Valve Orifice | CMNL10: 2mm , CMNL100: 6mm, CMNL500: 12mm |
| Valve Seals | FPM |
| Serviceable Valve | Yes |
| Housing Material | Corrosion resistant aluminium, EP coating |
| Packaging Details | box |
Preferred Buyer From
| Location | Worldwide |

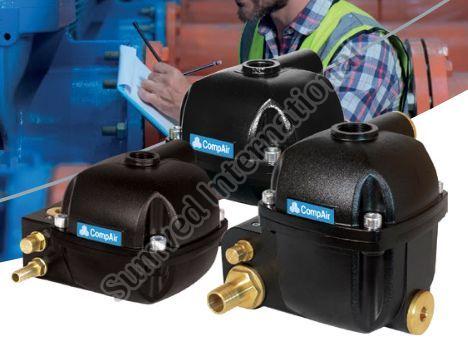

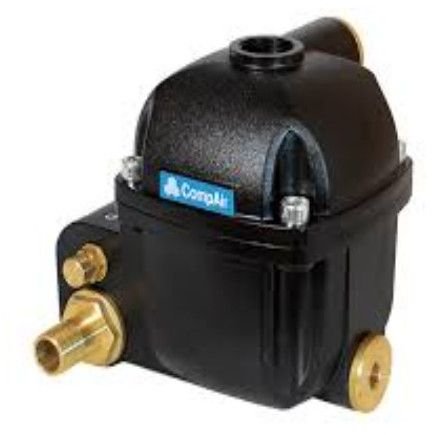

Magnetically operated level sensed condensate drain - the CMNL10 is a magnetically operated zero air loss drains that discharge condensate from all compressed air systems by using a unique technology based on magnetic forces and without the usage of electricity. The environmentally-friendly CMNL100 removes all types of condensate from compressed air systems up to 100 m3/min while the CMNL500 is ideal for larger applications up to 500 m3/min with exceptionally large condensate discharge capacity of 4,800 l/h at 16 bar.
Max. compressor capacity:
CMNL10: 10 m3/min
CMNL100: 100 m3/min
CMNL500: 500 m3/min
Min./max. system pressure: 0 - 16 bar (0 - 230 psi)
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | CompAir |
| Condition | New |
| Power | 230 V, 115 V |
| Pressure | Medium |
| Application | Liquid Draining |
| Size | 0-5inch |
| Country of Origin | India |
| Min./max. System Pressure | 0 - 16 Bar |
| Min./max. Medium Temperature | 1 - 100°C (34 - 212°F) |
| Min./max. Ambient Temperature | 1 - 50°C (34 - 122°F) |
| Supply Voltage Options | 230 VAC 50/60 Hz. |
| Power Consumption | Approx. 7W during cycle rotation for CSLV 1 Inch and 9W for CSLV 2 |
| Enclosure Protection Rating | IP54 (NEMA13) |
| Valve Inlet/outlet Connections | 1 Inch or 2 Inch |
| Valve Opening/closing Duration | 30 sec. (90°) for 1 Inch, or 105 sec for 2 Inch |
| Valve Housing Material | Brass Valve, Nickel Plated |
| Illuminated Lcd Display | Indicating Day, Time, Valve Status, Battery Life |
| Battery Type | CR2032, 3 volt |
| Programmable Options | Week planner, max. 100 switching points, to be distributed over 1-7 days |
| Manual Valve Override | Yes |
| Remote Controllable | Yes (optional) |
Preferred Buyer From
| Location | Worldwide |

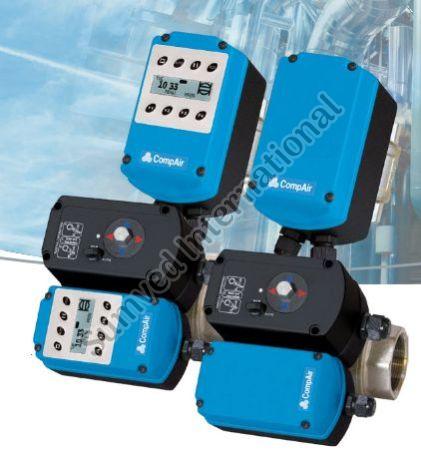

Product features
- Typically installed on the air outlet of the receiver or alternativly
applied to close off certain parts of the compressed air system
- Slow valve opening to avoid "water hammer" in pipe line system
- Brass vavle, nickel plated
-Compact desing - Easy to install
- Manual valve opening and closing in case of a power failure
- Time porgrammed or remote controlled
LIST
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer, Buying House |
| Brand Name | CompAir |
| Country of Origin | India |
| Material | Brass |
| Color | Sky Blue |
| Condition | New |
| Max. Compressor Capacity | Any Size |
| Min./max. System Pressure | Standard: 0 - 16 bar, HP: 0 - 80 bar |
| Min./max. Medium Temperature | 1 - 55°C (34 - 131°F) |
| Min./max. Ambient Temperature | 1 - 55°C (34 - 131°F) |
| Supply Voltage Options | 115VAC / 230VAC |
| Environmental Protection | IP65 (NEMA4) |
| Connector Type (power) | DIN 43650-A |
| Inlet connections | CTDV: 1/4 Inch, 3/8 Inch, 1/2 Inch BSP, CTDC: 1/4 Inch, 1/2 Inch BSP |
| Outlet Connections | CTDV: 1/4 Inch, 3/8 Inch, 1/2 Inch BSP, CTDC: 1/2 Inch BSP |
| Inlet Connection Height | Approx. 1cm |
| Valve Type | 2/2 Way, Direct Acting |
| Valve Orifice | CTDV: 4.5 mm, CTDC: 4.0 mm |
| Valve Seals | FPM |
| Serviceable Valve | Yes |
| Valve Housing Material | Brass (stainless Steel Available) |
| Test Feature | Yes |
| Timer Cycle Range (on/off) | 0.5 – 10 Seconds / 0.5 – 45 Minutes |
| Timer PCB | SMD technology, ensuring consistency in production |
| Timer Cycle Indication | Bright LED illumination |
Preferred Buyer From
| Location | Worldwide |

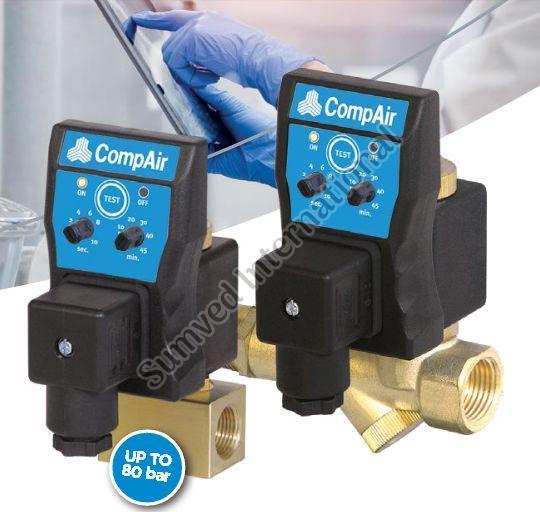

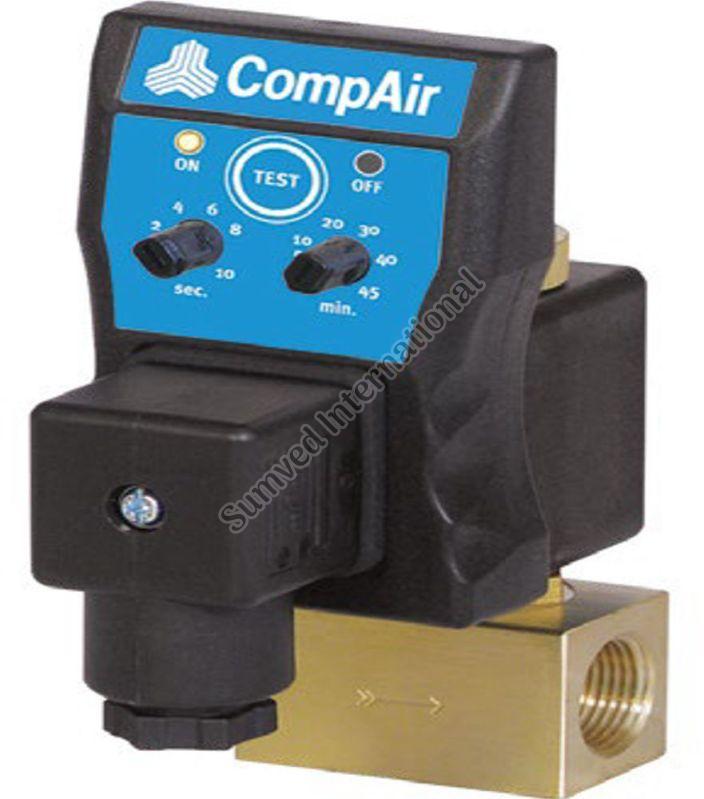

Electronic timer controlled condensate drain:
The CTDV timer controlled condensate drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems. The CTDC in addition, has an integral ball valve and a strainer, all in the same body.
Features & Benefits:
• Any type of compressed air system
and compressor capacity
• Available in High Pressure up to 80 bar
• Environmentally friendly low Watt version available
• Serviceable valve construction
• Large (4.5mm) valve orifice
• Does not air-lock during operation
• Quick to service
• Test feature (micro-switch)
• Accurate time cycles
• High quality PCB components, offering
you consistent quality
