Product Details
Brand Name
CompAir
Material
Brass
Application
Air Fitting
Max. Compressor Capacity
CCNL10: 10 m 3 /min, CCNL100: 100 m 3 /min
Max. Drainage Capacity of Condensate
CCNL10: 45 l/h at 16 bar, CCNL100: 665 l/h at 16 bar, CCNL100 HP: 120 l/h at 50 bar
Min./max. System Pressure
0 - 16 bar (0 - 230 psi), HP: 0 - 50 bar (0 - 725 psi)
Min./max. Medium Temperature
1 - 50°C (34 - 122°F)
Min./max. Ambient Temperature
1 - 50°C (34 - 122°F)
Supply Voltage Options
115VAC / 230VAC
Enclosure Protection Rating
IP65 (NEMA4)
Connector Type (power)
DIN 43650-B
Inlet Connection
1/2
Inlet Height
CCNL10: 74mm CCNL100: 110mm (top) and 75 & 15mm (side)
Side Inlet Adaptor
Yes, Optional
Outlet Connection
1/4 Inch BSP, with brass hose barb adapter
Valve Type
2/2 Way, Direct Acting
Valve Orifice
CCNL10: 2mm CCNL100: 4mm (Non-HP) 1.8mm (HP)
Valve Seals
FPM
Serviceable Valve
Yes
Integrated Mesh Strainer
Yes
Housing Material
Corrosion Resistant Aluminium, Ep Coating
Test Feature
Yes
Visual Alarm
Yes, LED indication
Alarm feature (N/O)*
Normally open alarm output contact (potential free relay)

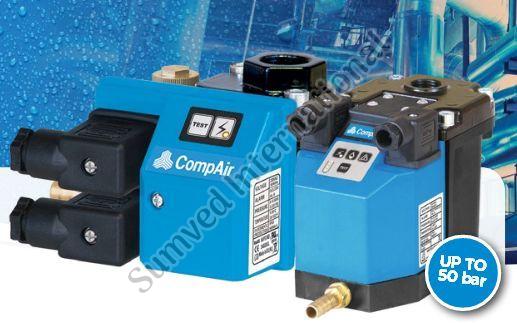

The CCNL10 removes all types of condensate from
compressed air systems with air flow up to 10 m3/min
without the loss of compressed air while the CCNL100
up to 100 m3/min.
Product features
The CCNL100 offers a rapid pay-back period due to
the zero air loss feature and energy saving features. The
compact and robust industrial housing, 2/2 way direct acting
valve with a large orifice, alarm feature and the integrated
mesh strainer make the CCNL100 and CCNL100-HP
highly reliable draining solutions. Equipped with a digital,
LED illuminated, sight-port/level indicator showing you
the condensate level inside the reservoir and enabling
you to monitor the operation, even in poor lit places.
